Machine Supervision

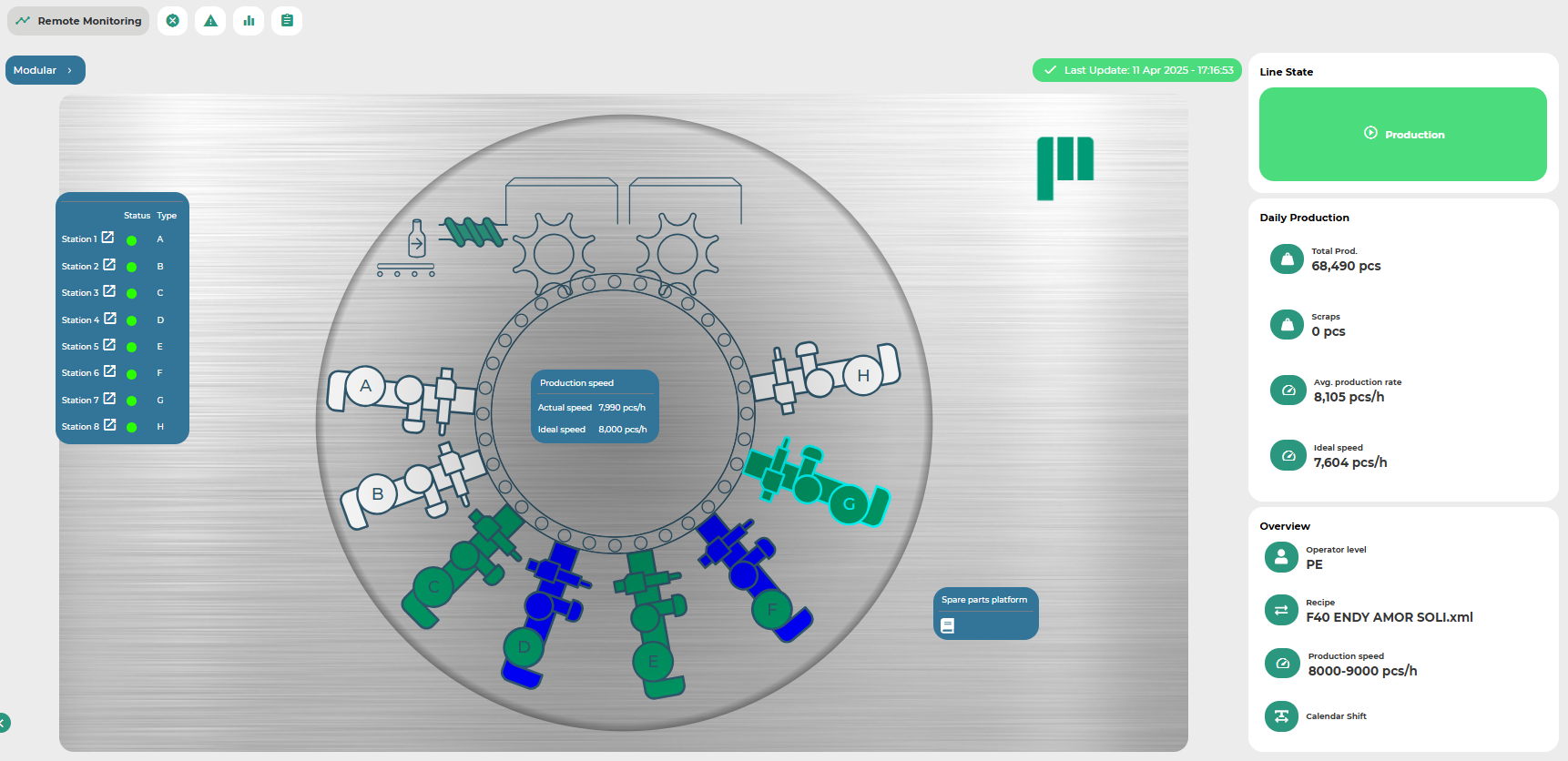

The MACHINE SUPERVISION page is composed of three tabs: REMOTE MONITORING, ALARMS, WARNINGS and STATE TIMELINE.

The ALARMS/WARNINGS tab are dedicated to the currently active alarms/warnings reported in tabular form, with information related to the alarm message.

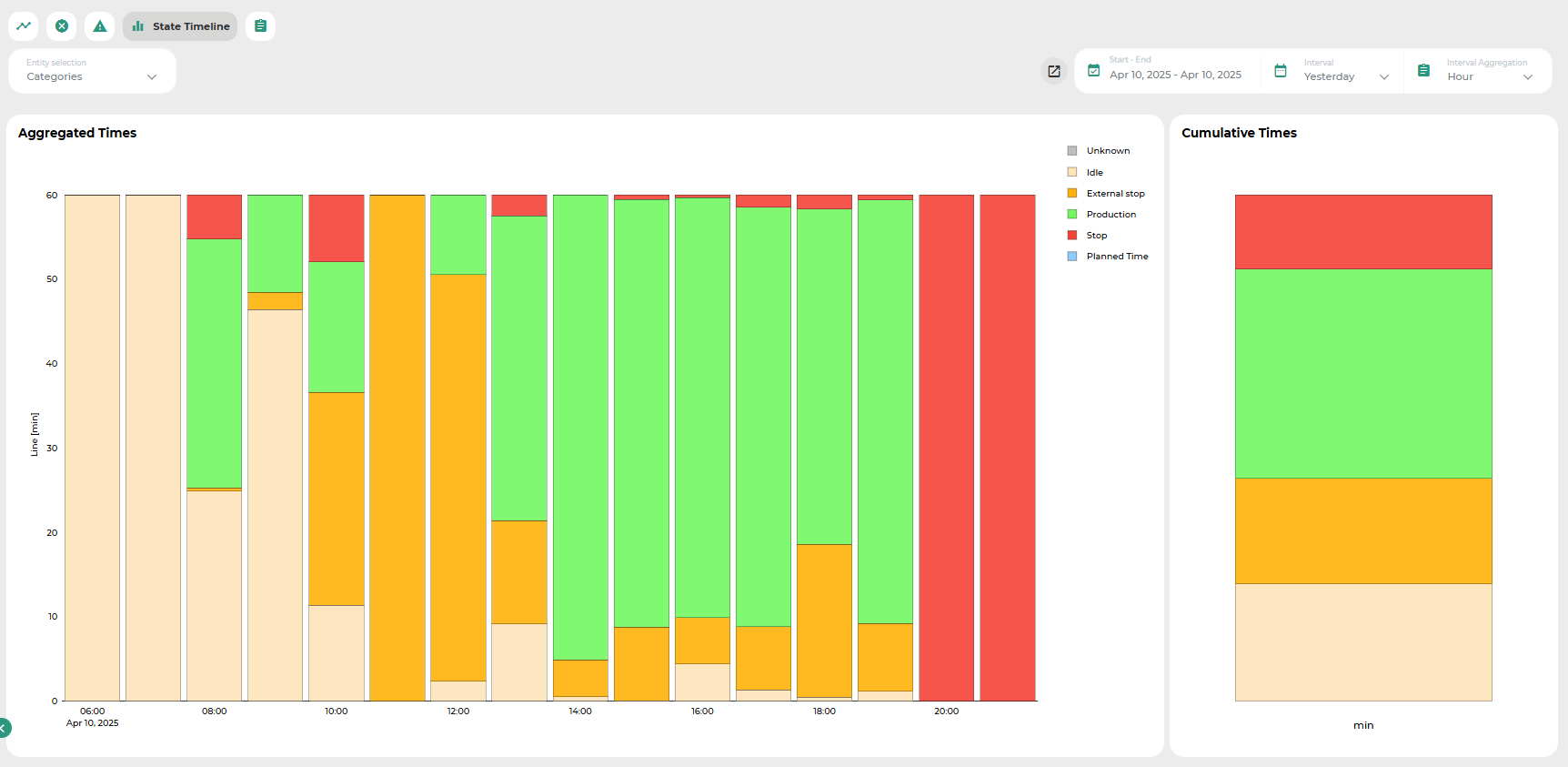

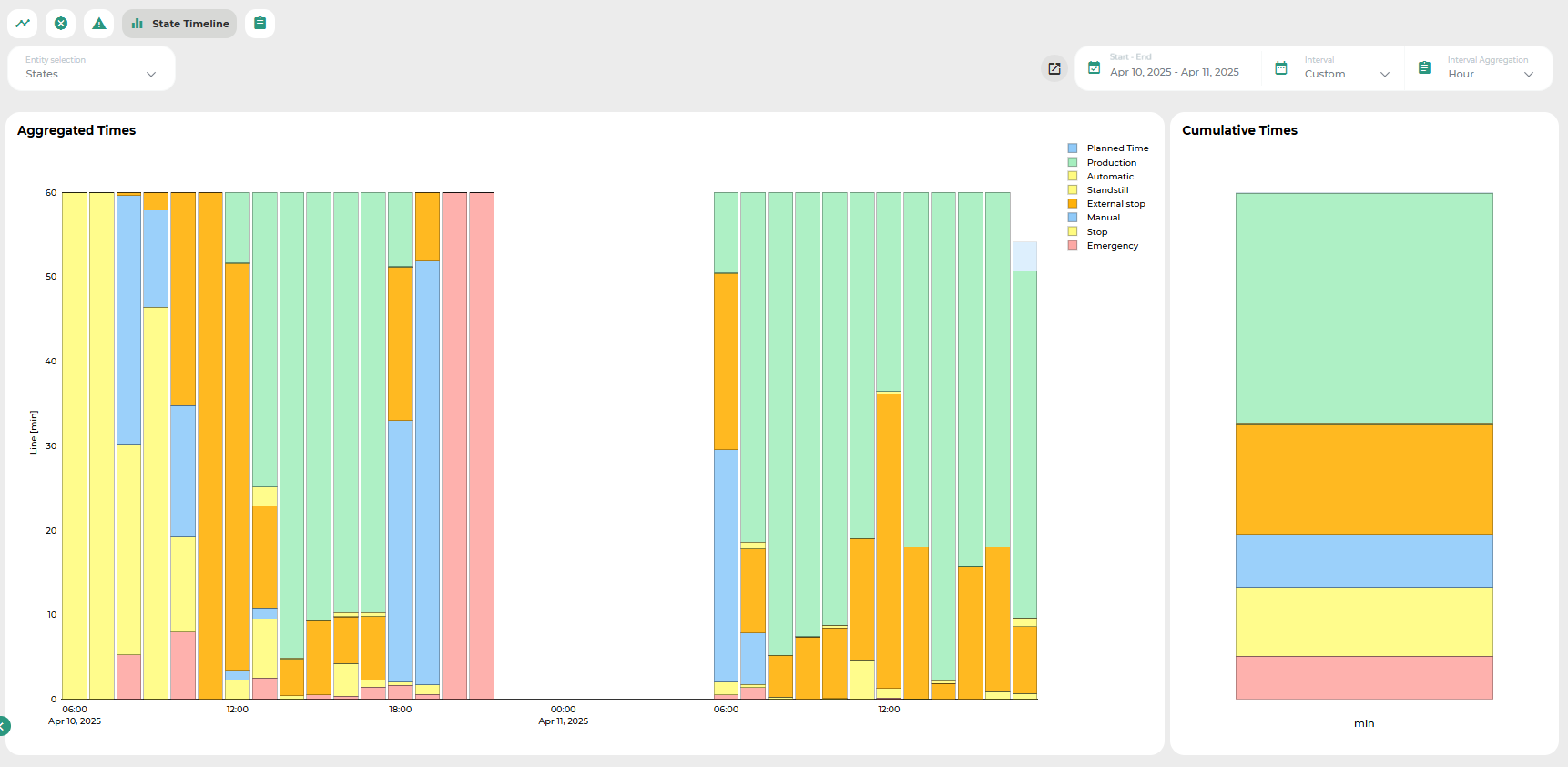

In the STATE TIMELINE tab, the evolution of the machine states (base on Pack-ML states) are reported both in a Bar chart and in a Gantt chart. They report respectively the start/end time and the duration of each interval and the time/percentage distribution for the various states in which the machine was in the selected time period. Depending on the selected "offset" it is possible to see the values acquired in the Current shift, in the current work day or in the current production order.

The Detected activities highlight each machine stops. Hovering the cursor on the object, a label will appear indicating any activities carried out during the stop. Some activities can be auto detected by the edge device, while other must be inserted in the HMI or coming from the customer MES.

The Alarms and Warnings row highlights any alarms and warnings raised during the period shown. Hovering the cursor on the event, the codes and descriptions of the alarm/warning are shown.
