Home Page

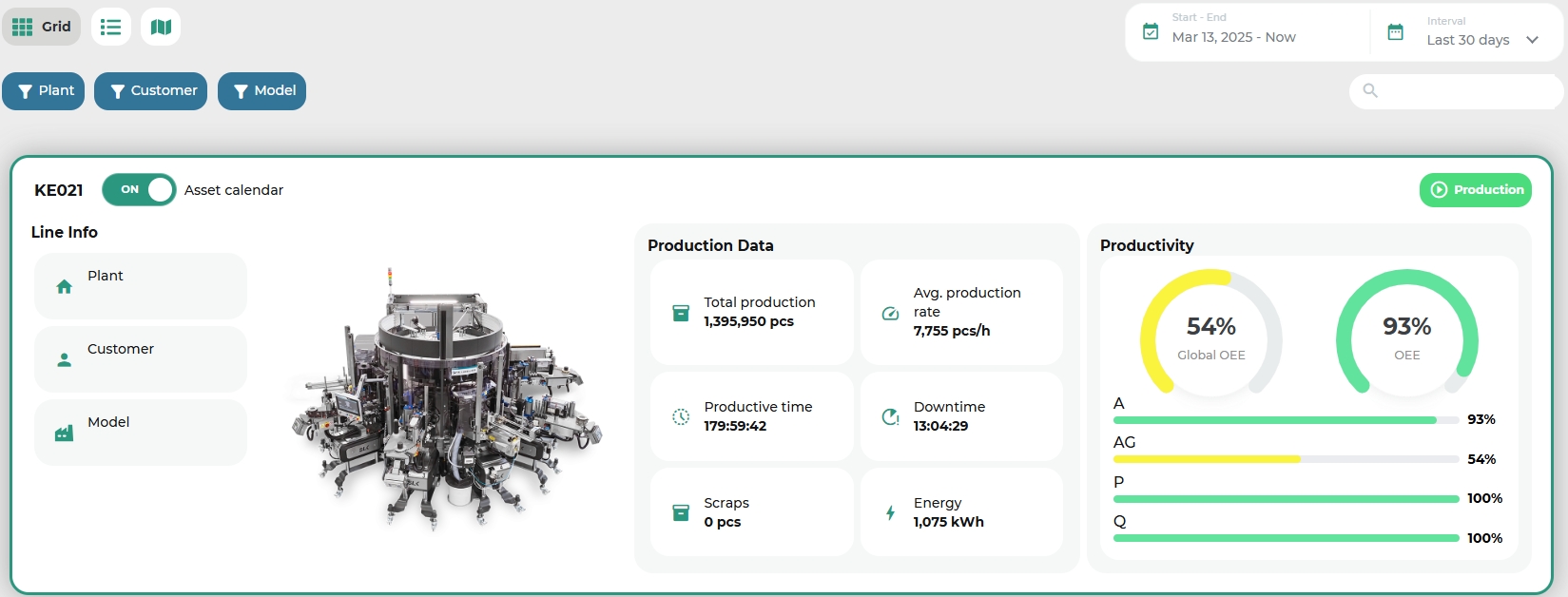

In the HOMEPAGE of TelescoPE it is possible to select a machine among those available for each individual user. The selection can be made through a list of cards, a tabular list or a selection on the map.

The section summarizes on a single page some useful information related to the selected machine. All the information refers to the time range—either predefined or customized—selected by the user through the appropriate drop-down menu in the top right corner.

Considering the screen as divided into three sections, the following information can be observed:

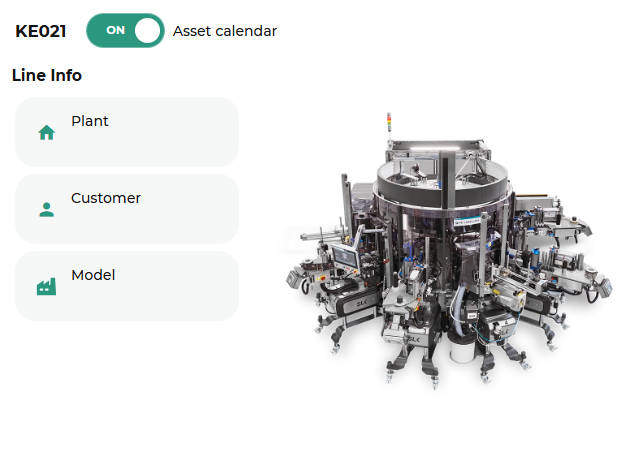

• on the left, the machine serial number, the installation plant, the customer name and the model are displayed. There is also the option to enable the work calendar (see dedicated section);

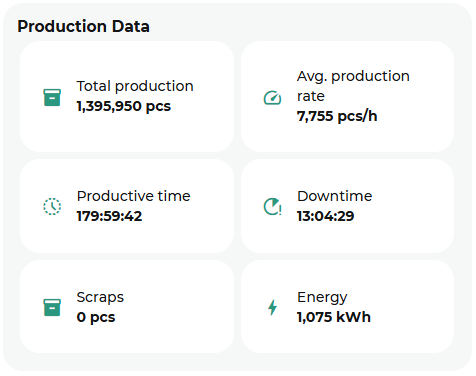

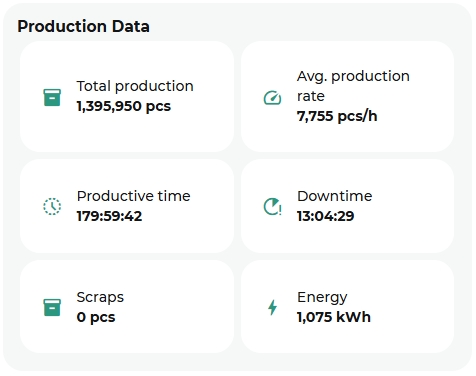

• In the center, several KPIs provide general information related to the machine, always referring to the selected time range;

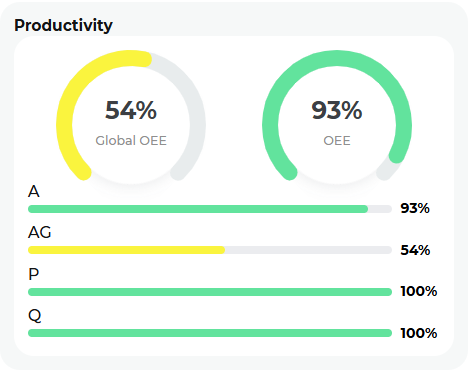

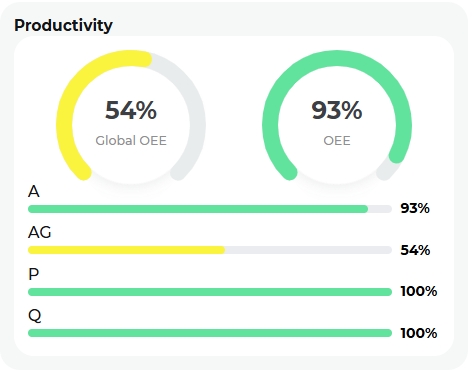

• On the right, KPIs related to Performance, Availability, Quality (if available for the current project), OEE, and Global OEE are displayed. The Global OEE is calculated by taking into account the performance of the labeling machine as subordinate to the line (e.g., downtimes due to lack of bottles or output accumulation), while the OEE refers exclusively to the performance of the labeling machine itself.
